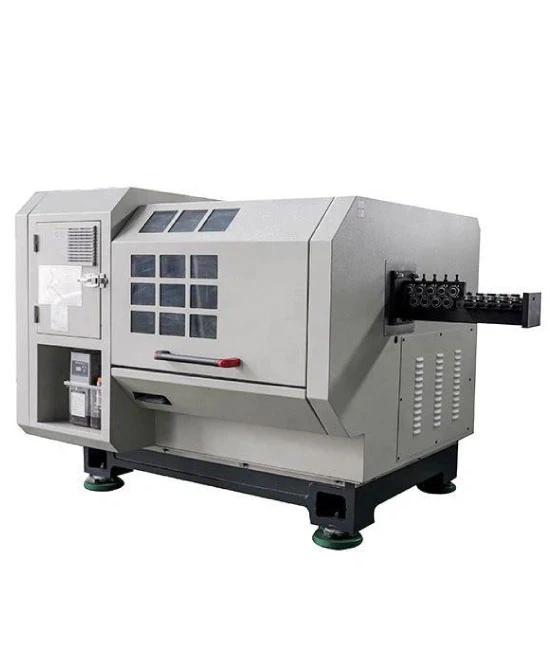

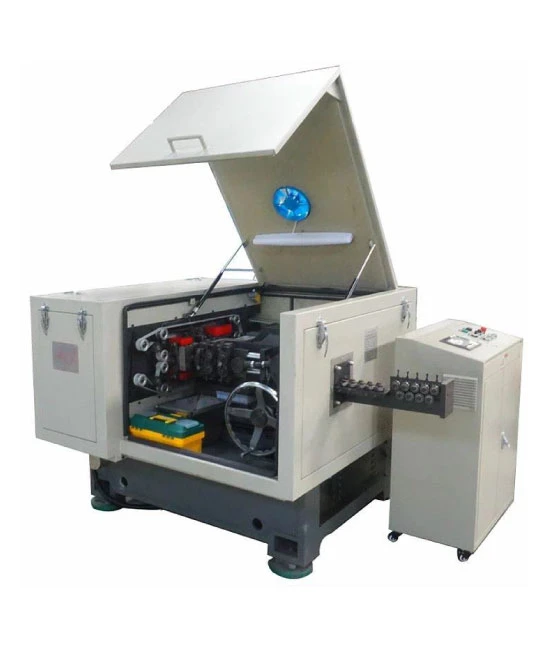

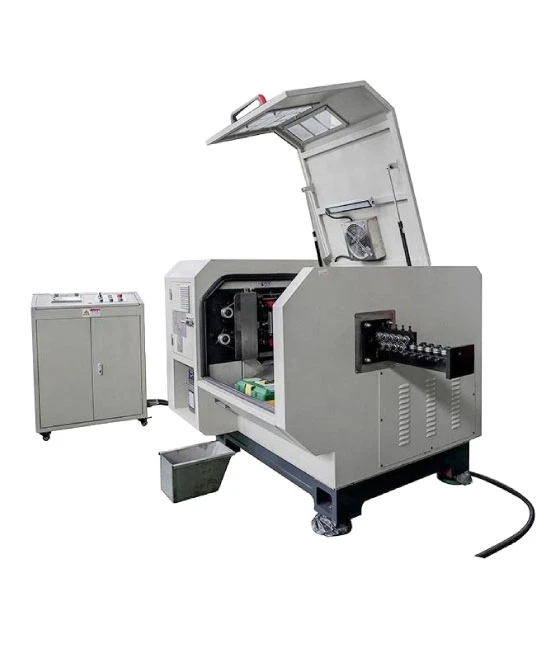

High Speed Nail Making Machine G H S 90
The GHS90 High Speed Nail Making Machine is an advanced industrial solution engineered for high-volume, precision nail production.
Ideal for manufacturing common nails in various lengths and diameters, this machine combines cutting-edge speed with outstanding durability.
With a capacity to produce up to thousands of nails per minute, it drastically improves productivity while maintaining consistent nail quality.
The machine features a solid steel body, automatic lubrication system, and high-tensile components that ensure long-lasting performance under continuous operation.
Its user-friendly interface and easy adjustment mechanism allow operators to switch between nail sizes quickly, minimizing downtime.
The GHS90 also runs with minimal noise and vibration, ensuring a smoother working environment.
Trusted by manufacturers across sectors, this nail making machine is perfect for workshops, construction hardware suppliers, and production units aiming to scale efficiently and reliably.
Whether for domestic supply or export purposes, the GHS90 is built to deliver unmatched performance and operational economy.
Product Specification
Model No.: GHS90
Rated Power: 10 HP
Actual Power Rating: 6 HP
Output: 760 nails per minute (maximum)
Wire Diameter Range: 2.0 mm to 3.8 mm
Nail Length Range: 40 mm to 90 mm
Machine Dimensions: 1500 mm x 1300 mm x 1100 mm
Approximate Machine Weight: 2500 kg
Skilled Operator Requirement: 1 skilled operator can operate 8 machines
Features:
PLC (Delta) control based system, AC Drive (Delta make), motor from Siemens or Bharat Bijlee, auto control lubricating oil system, and 7 sensors for safety and nail counting.
Advantages:
Delivers consistently best and accurate quality. All tools are made of tungsten carbide, ensuring longer life compared to older tools.
